Rim Joist & Band Joist Spray Foam in McAllen, TX

Rim Joist & Band Joist Spray Foam McAllen

Rim joist and band joist spray foam in McAllen seals the gap that costs you the most. Every bonus room, cantilever, and second-story overhang in the Rio Grande Valley sits on a band joist exposed to 150-degree attic air above and unconditioned space below. That gap leaks cooled air into the frame cavity all summer long. A closed-cell spray foam pass stops it cold, costs less than a new HVAC unit, and pays back faster than any other insulation job on your home. We have sealed rim joists across McAllen, Pharr, Weslaco, Harlingen, and Brownsville since 2012, and the comfort gain is immediate. This is the small-ticket job with the fastest payback in the Rio Grande Valley.

Why Rim Joist and Band Joist Air Leaks Matter in McAllen's Hot Climate

The McAllen area sits on a flat subtropical delta where almost every home is built on a concrete slab with a vented attic above carrying ductwork and the air handler. That attic runs 150 to 160 degrees Fahrenheit for much of the year under relentless Texas sun. The rim joist, also called the band joist, is the wooden frame member that sits on top of the foundation wall and carries the floor joists of the first story or the cantilever of a bonus room. It is directly exposed to attic temperature on its top and outer edges, and it has dozens of small gaps where rim band meets rim band, where rim band meets the rim board, and where utilities penetrate the frame. Each gap is a direct pathway for conditioned air to escape into the attic.

Unconditioned air leaks directly from the conditioned floor cavity into the attic, raising your cooling load every hour of the cooling season.
The rim joist is the hardest part of the building envelope to reach with traditional blown-in insulation, leaving it nearly always under-sealed.
A single rim joist job on a bonus room or cantilever is a small scope, low cost, and the payback is faster than attic work alone.
Closed-cell spray foam fills every gap at once, creates an air barrier, and does not settle or leave voids over time.

Sealing the rim joist stops the leak, lowers your cooling load, and improves comfort on the upper floors immediately.

Key info: A typical McAllen bonus room built in the 1990s or 2000s has 80 to 120 linear feet of rim joist. Sealing it with closed-cell foam costs between $800 and $1,400 and typically drops the temperature on that floor by 3 to 5 degrees Fahrenheit in peak summer.

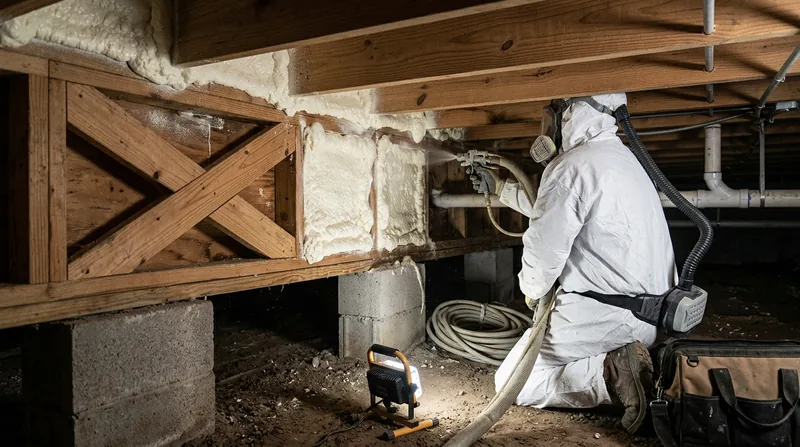

How We Seal Rim Joists and Band Joists in McAllen

The rim joist job is straightforward, but it requires access to the space between the rim band and the subfloor or to the rim from the attic side, depending on the home's layout. In McAllen's brick-veneer ranches and frame-and-stucco homes from the 1960s to 1980s, the rim is often accessible from the attic. In newer two-story homes in north McAllen, Edinburg, and Sharyland, the rim may require entry from a crawl space or from the garage. We inspect the site, confirm access, and spray closed-cell foam in a single controlled pass to fill the entire rim cavity and seal all penetrations.

We inspect the rim joist from the attic or crawl space and identify all gaps, penetrations, and the full length of the rim band.
We set up mechanical ventilation to manage vapors during the spray and cure process, with re-entry recommended at 24 to 48 hours.
We spray closed-cell foam in a single controlled pass, typically 2 to 3 inches thick, to fill the rim cavity and seal all air gaps.
We verify coverage and thickness on site, document the work with written specifications, and provide a written estimate with R-value and thickness before we start.

The entire job typically takes 3 to 6 hours from setup to cleanup, and your rim joist is sealed for life.

Example: A Pharr homeowner with a 1970s brick-veneer ranch and a cantilever master bedroom called us because the upstairs was always 5 to 7 degrees hotter than the rest of the house in August. We sealed 94 linear feet of rim joist with closed-cell foam from the attic side. Cost was $1,120. Three weeks later, he reported the upstairs was now only 2 degrees hotter, and his AC was running shorter cycles. That is the typical payback.

Rim Joist and Band Joist Spray Foam Methods

Approach	Description	Best for
Closed-Cell Spray Foam	High-density, rigid foam applied at 2 to 3 inches; R-value 6.5 to 7 per inch; creates air barrier and vapor barrier in one pass.	Rim joists in hot climates where air leakage and moisture control are both critical; standard choice in McAllen.
Open-Cell Spray Foam	Lower-density, softer foam; R-value 3.5 to 3.8 per inch; breathable and allows drying; requires 6 to 8 inches for equivalent R-value.	Rim joists in dry climates or where vapor permeability is desired; rarely the first choice for Rio Grande Valley rim work.
Blown-In Fiberglass or Cellulose	Loose-fill insulation; R-value 3.2 to 3.8 per inch; does not seal gaps; settles over time and leaves voids.	Not recommended for rim joists; air sealing is the primary goal, and blown-in does not create an air barrier.
Rigid Foam Board Plus Caulk	Foam board fitted and caulked; R-value 4 to 6 per inch depending on type; labor-intensive and requires precision fit.	Rim joists where access is severely limited or where spray equipment cannot reach; slower and more expensive than spray.

Closed-cell spray foam is the standard for rim joist work in McAllen because it fills every gap in a single pass, requires minimal thickness to achieve high R-value, and creates both an air barrier and a vapor barrier in the humid Rio Grande Valley climate.

Rim Joist and Band Joist Spray Foam Cost in McAllen: What to Expect

Rim joist spray foam is one of the most affordable insulation jobs because the scope is small, the access is straightforward, and the material cost is low. A typical rim joist job in McAllen starts at around $650 for a smaller cantilever or 40 to 50 linear feet of rim band. A full rim joist on a larger bonus room or two-story home with 100 to 150 linear feet runs between $1,200 and $1,800. The main factors that affect the cost are the total linear feet of rim to seal, the accessibility of the rim from the attic or crawl space, and whether utilities or penetrations require extra sealing.

We provide a written estimate with R-value and thickness specifications before any work begins. The estimate includes the linear feet of rim to be sealed, the closed-cell thickness (typically 2 to 3 inches), the R-value per inch, and the total installed cost. We do not quote per board foot without a site inspection, and we do not offer a firm price until we have measured the rim and confirmed access. Travel within McAllen and surrounding areas is included in the estimate, with no separate mileage fee.

For a detailed pricing breakdown and to see how your specific rim joist job compares, visit our full pricing overview. If you want to understand how rim joist sealing fits into a larger attic or whole-home insulation plan, we also offer attic spray foam insulation and closed-cell spray foam for other parts of your home.

Rim Joist and Band Joist Spray Foam Near Me: What McAllen Homeowners Should Know Before Hiring

Hiring a spray foam contractor for rim joist work requires the same care as any insulation job, but the scope is small enough that you can get multiple quotes quickly and compare them fairly. Before you call, understand what the job requires and what a credible contractor will deliver. In Texas, insulation work is regulated at the city level, not the state level. Some McAllen-area cities require contractor registration before any work begins, and others do not. Ask any contractor whether your city requires registration, and confirm that requirement with your city's building or planning department before work starts. A contractor should be fully insured and able to provide proof of insurance on request.

Get a written estimate from at least two contractors that includes the linear feet of rim to seal, the foam type and thickness, the R-value, and the total cost, never just a per-board-foot price.
Ask the contractor about mechanical ventilation during the spray and cure process, and confirm that the re-entry window is 24 to 48 hours, not immediate.
Check references from recent rim joist jobs in your area, and ask whether the homeowner was satisfied with the comfort improvement and the installer's follow-up.
Confirm that the contractor is fully insured and ask for a certificate of insurance; never hire a contractor who cannot verify coverage.
Ask about the warranty on the installation and what it covers; a one-to-three-year workmanship warranty is standard and honest.

The fastest way to get started is a free estimate from our office. Call us at (956) 540-5716 or request a free estimate online, and we will respond within 24 hours with a no-obligation quote and a conversation about your specific rim joist or band joist issue.

Rim Joist & Band Joist Spray Foam in McAllen: Pricing Guide

Service	Price	Details
Small cantilever or bonus room rim (40-60 linear feet)	Starting at $650	Closed-cell spray foam, 2-3 inches thick, includes attic or crawl access inspection and mechanical ventilation during cure
Full two-story rim joist (100-150 linear feet)	Starting at $1,200	Complete rim sealing on larger homes; cost varies with linear footage, accessibility, and utility penetrations that require extra sealing
Complex or multi-section rim with tight access	On estimate	Rim joists requiring crawl space entry, multiple attic sections, or significant utility work need on-site measurement before pricing
Travel within McAllen and surrounding areas	Included	No separate mileage fee or travel charge for jobs in McAllen, Pharr, Weslaco, Harlingen, Brownsville, and nearby cities
Free written estimate with R-value and thickness specs	Free	Response within 24 hours at (956) 540-5716; includes linear feet, foam type, R-value per inch, and total installed cost

Indicative pricing, the exact cost depends on square footage, finish, and site access. Free personalized estimate within 24h at (956) 540-5716.

Rim Joist & Band Joist Spray Foam: service areas

Frequently asked questions: Rim Joist & Band Joist Spray Foam in McAllen

How much does rim joist spray foam cost in McAllen?

A small cantilever or 40 to 60 linear feet of rim joist starts at around $650. A full rim joist on a larger bonus room or two-story home with 100 to 150 linear feet typically runs between $1,200 and $1,800. The main factors are linear footage, accessibility from the attic or crawl space, and any utility penetrations. We provide a free written estimate with R-value and thickness specifications before any work begins.

What is the difference between a rim joist and a band joist?

The terms are used interchangeably in most contexts. The rim joist is the horizontal wooden frame member that sits on top of the foundation wall and carries the floor joists. The band joist is the outer edge of that rim, typically the exposed face that runs around the perimeter of the home. Both refer to the same structural gap that leaks conditioned air into the attic or unconditioned space, and both are sealed with the same spray foam process.

How long does a rim joist spray foam job take?

A typical rim joist job takes 3 to 6 hours from setup to cleanup, depending on the linear footage and accessibility. Setup includes mechanical ventilation, which is required during the spray and cure process. The foam cures in 24 to 48 hours, and we recommend 24 to 48 hours before re-entry into the space. A small cantilever might be done in 3 hours, while a full two-story rim with 150 linear feet might take 6 hours.

Why is closed-cell foam better than blown-in insulation for rim joists?

Closed-cell spray foam creates an air barrier and a vapor barrier in a single pass, filling every gap at once. Blown-in insulation like fiberglass or cellulose does not seal gaps, settles over time, and leaves voids that allow air to leak through. The rim joist is the hardest part of the building envelope to reach and seal with blown-in material, so spray foam is the only method that guarantees complete air sealing.

What is the best time of year for rim joist spray foam in McAllen?

Rim joist spray foam can be done year-round in the Rio Grande Valley, but the best window is late fall through early spring, when outdoor temperatures are cooler and humidity is lower. This allows the foam to cure more evenly and reduces the risk of incomplete cure in extreme heat. However, the job is most valuable in summer, when the temperature difference between the attic (150 to 160 degrees) and the conditioned space is greatest. Many homeowners schedule the work in spring to be ready for peak cooling season.

Do I need a permit for rim joist spray foam in McAllen?

Permitting requirements vary by city in the Rio Grande Valley. Some cities require a permit for any insulation work, while others do not. We help you understand what applies at your address, and we defer to your local building department for final guidance. Ask your contractor whether your city requires a permit, and confirm the requirement with your city's building or planning department before work begins. We are happy to help navigate the process.

Can rim joist spray foam help with hot upstairs rooms in my McAllen home?

Yes. A common complaint in McAllen bonus rooms and second stories is that they are 5 to 7 degrees hotter than the rest of the house in summer. This is often caused by air leaks through the rim joist, which exposes the floor cavity directly to 150-degree attic air. Sealing the rim joist with closed-cell foam typically reduces that temperature difference to 2 to 3 degrees, and it improves comfort immediately. The payback is faster than almost any other insulation job.

How do I verify that a spray foam contractor is fully insured?

Ask the contractor for a certificate of insurance before any work begins. The certificate should show general liability coverage and workers compensation coverage (if the contractor has employees). You can also ask to contact the insurance company directly to verify the policy is active. Never hire a contractor who cannot provide proof of insurance or who says insurance will be arranged later. Full insurance is a non-negotiable credential.

What should I look for in a rim joist spray foam estimate?

A credible estimate should include the linear feet of rim to be sealed, the foam type (closed-cell or open-cell), the thickness in inches, the R-value per inch, and the total installed cost. It should never be just a per-board-foot price or a vague quote. The estimate should also mention mechanical ventilation during the spray and cure, the re-entry window (24 to 48 hours), and any warranty on the installation. Get at least two estimates so you can compare them fairly.

Is rim joist spray foam a good investment for my McAllen home?

Yes, rim joist spray foam is one of the fastest-payback insulation jobs because the scope is small, the cost is low, and the comfort improvement is immediate. A typical bonus room or cantilever job costs $800 to $1,400 and typically drops the temperature on that floor by 3 to 5 degrees Fahrenheit in peak summer. Many homeowners report that the job paid for itself in reduced cooling costs within the first season, especially in a hot Rio Grande Valley summer. It is also a small enough scope that you can start here and move on to larger jobs like attic or crawl space insulation later.
